Description

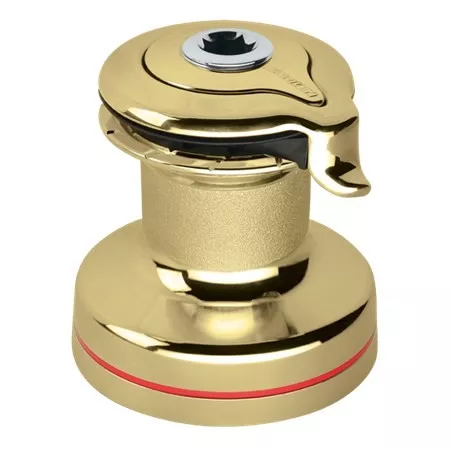

Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads, stress-free seasonal maintenance, and one-person installation. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Weight (kg) 3.9 kg
Weight (lb) 8.6 lb
Maximum line ? (mm) 12 mm
Maximum line ? (in) 1/2 in
Fasteners (mm) 6 SH mm
Fasteners (in) 1/4 SH in
Fastener circle (mm) 110 mm
Fastener circle (in) 4 3/8 in
Height (mm) 148 mm
Height (in) 5 13/16 in
Configuration Plain-top
Speed 1
Drum ? (mm) 73 mm
Drum ? (in) 2 7/8 in
Base ? (mm) 137 mm
Base ? (in) 5 3/8 in
Line entry height (mm) 61 mm
Line entry height (in) 2 3/8 in
Minimum line ? (mm) 6 mm
Minimum line ? (in) 1/4 in
Number of fasteners 5
Gear ratio – 1 2.76
Power ratio – 1 19.20
Material Bronze
Available power Manual
