Description

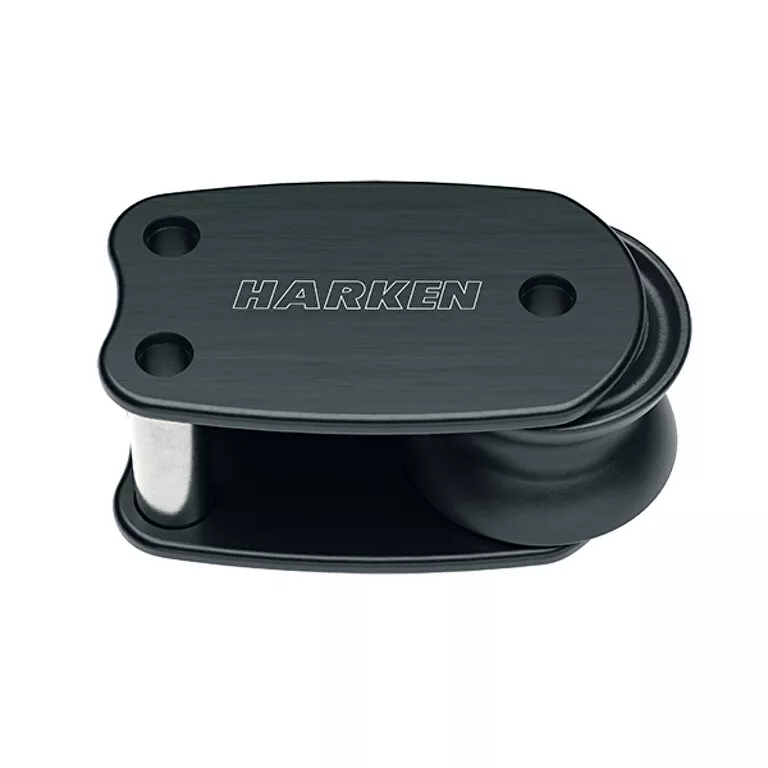

Footblocks are, by definition, fixed to the deck. Our new tulip sheave design helps realign lead angle in situations where the lead is not perfectly aligned with the block – situations where off-centre loading would cause significant additional friction with a narrower conventional sheave.
| Sheave Ø (mm) | 45 mm |
| Sheave Ø (in) | 1 3/4 in |
| Length (mm) | 91 mm |
| Length (in) | 3 9/16 in |
| Width (mm) | 50 mm |
| Width (in) | 2 in |
| Height (mm) | 41 mm |
| Height (in) | 1 5/8 in |
| Weight (g) | 172 g |
| Weight (oz) | 5/16 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Number of fasteners | 3 |
| Fasteners (mm) | 8 mm |
| Fasteners (in) | 5/16 in |
| Maximum working load (kg) | 998 kg |
| Maximum working load (lb) | 2200 lb |
| Breaking load (lb) | 4400 lb |
| Breaking load (kg) | 1996 kg |
