Description

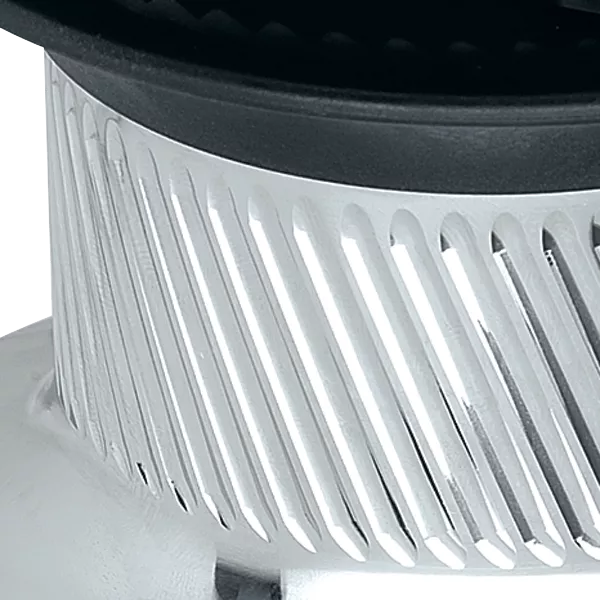

The Radial winch drum?s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Weight (kg) 15.4 kg
Weight (lb) 34 lb
Maximum line ? (mm) 16 mm
Maximum line ? (in) 5/8 in
Fasteners (mm) M8 SH mm
Fasteners (in) 5/16 SH in
Fastener circle (mm) 204 mm
Fastener circle (in) 8 in
Height (mm) 246 mm
Height (in) 9 11/16 in
Number of fasteners 6
Minimum line ? (mm) 8 mm
Minimum line ? (in) 5/16 in
Configuration Self-tailing
Speed 3
Drum ? (mm) 120 mm
Drum ? (in) 4 3/4 in
Base ? (mm) 236 mm
Base ? (in) 9 5/16 in
Line entry height (mm) 116 mm
Line entry height (in) 4 9/16 in
Gear ratio – 1 2.20
Gear ratio – 2 4.80
Gear ratio – 3 14.40
Power ratio – 1 9.20
Power ratio – 2 20.30
Power ratio – 3 61.00
Material Chrome
Available power Manual
