Description

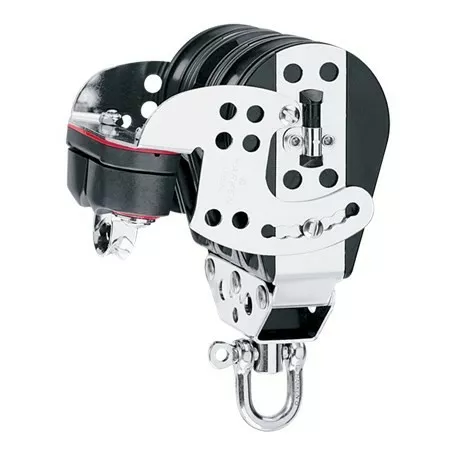

Midrange Hexaratchet blocks grip loaded sheets, yet allow sailors to ease and trim quickly and with complete control. A switch on the side engages and disengages the ratchet mechanism.
Sheave ? (mm) 76 mm
Sheave ? (in) 3 in
Length (mm) 197 mm
Length (in) 7 3/4 in
Weight (g) 1389 g
Weight (oz) 49 oz
Maximum line ? (mm) 14 mm
Maximum line ? (in) 9/16 in
Maximum working load (kg) 1724 kg
Maximum working load (lb) 3800 lb
Breaking load (lb) 8500 lb
Breaking load (kg) 3856 kg
Shackle pin ? (mm) 8 mm
Shackle pin ? (in) 5/16 in
Turns clockwise
