Description

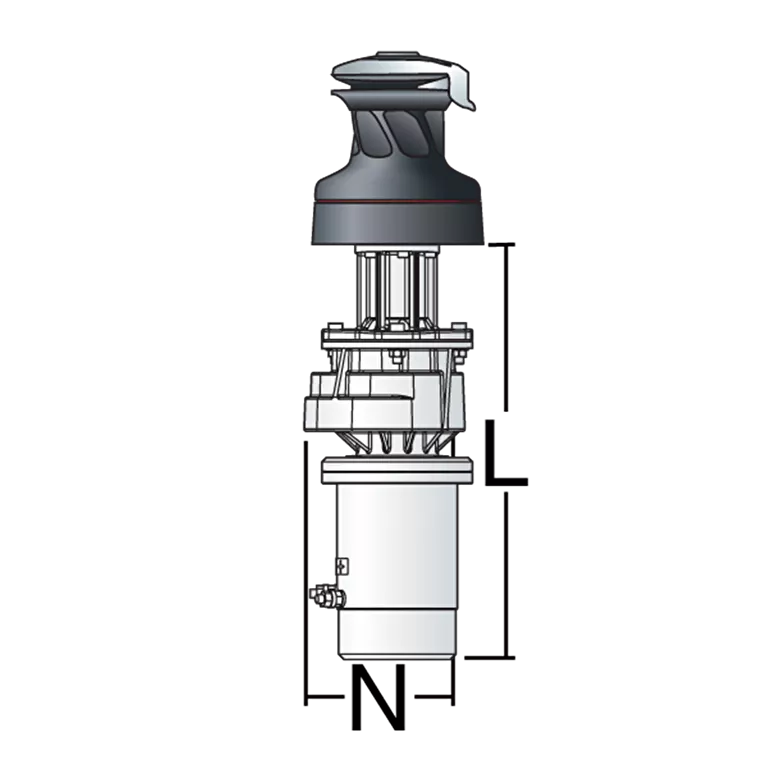

All Performa winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Electric Performa winches let you trim any size sail with the push of a button.
| Minimum line Ø (mm) | 10 mm |
| Minimum line Ø (in) | 3/8 in |
| Maximum line Ø (mm) | 18 mm |
| Maximum line Ø (in) | 11/16 in |
| Configuration | Self-tailing |
| Speed | 2 |
| Drum Ø (mm) | 175 mm |
| Drum Ø (in) | 6 7/8 in |
| Base Ø (mm) | 287 mm |
| Base Ø (in) | 11 5/16 in |
| Height (mm) | 320 mm |
| Height (in) | 12 9/16 in |
| Weight (kg) | 21.2 kg |
| Weight (lb) | 46.8 lb |
| Weight of Winch and Motor (kg) | 33.7 |
| Weight of Winch and Motor (lb) | 74.4 |
| Motor weight (kg) | 12.5 kg |
| Motor weight (lb) | 27.6 lb |
| Line entry height (mm) | 164 mm |
| Line entry height (in) | 6 7/16 in |
| Fastener circle (in) | 9 3/16 in |
| Fastener circle (mm) | 233 mm |
| Fasteners (mm) | M10 SH mm |
| Fasteners (in) | 3/8 SH in |
| Number of fasteners | 8 |
| Gear ratio – 1 | 9.94 |
| Gear ratio – 2 | 32.12 |
| Power ratio – 1 | 28.85 |
| Power ratio – 2 | 93.24 |
| Racing disconnect rod | B80PDR |
| Electric (L) (mm) | 427 mm |
| Electric (L) (in) | 16 13/16 in |
| Electric (N) (mm) | 172 mm |
| Electric (N) (in) | 6 3/4 in |
