Description
Clamcleat CL204 Mini
The Harken Mini Cl204/R is a versatile block designed for lightweight applications. Featuring a durable construction, it is perfect for dinghy and small boat rigging, offering smooth operation and reliable performance in marine settings.
Simple ridged v groove holds ropes firmly yet is devoid of any moving parts to break or seize.
An open cleat which is quick, efficient and simple to use. This cleat has a variety of uses both on and off the boat. Features countersunk fixing holes.

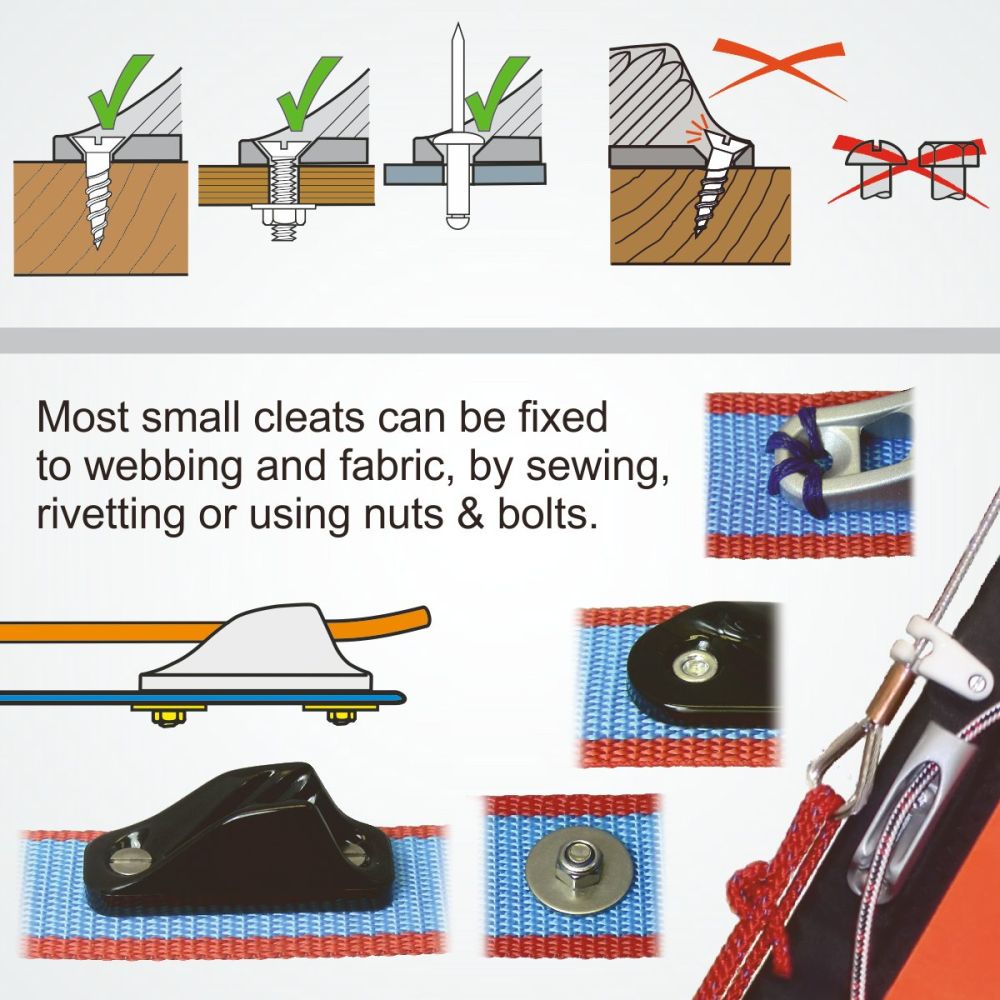

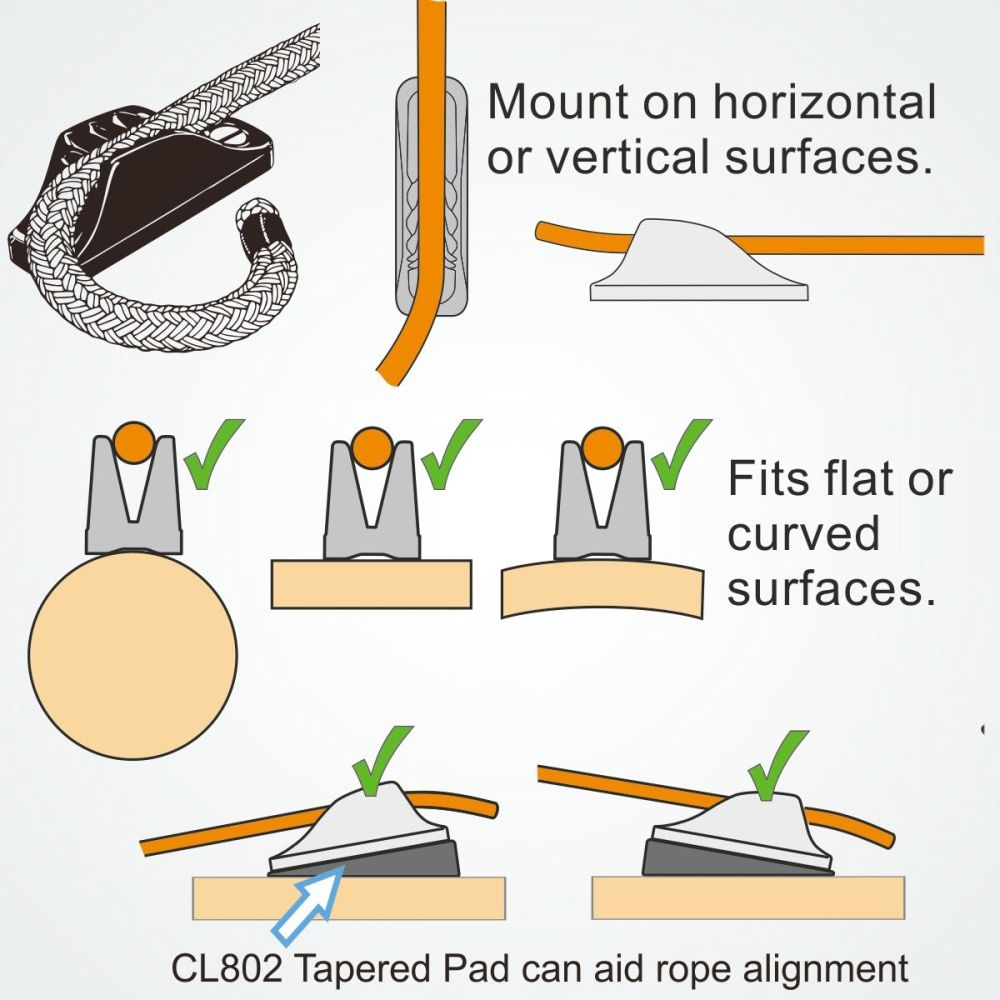

The Clamcleat® CL204 is an elegant design in black. The rope drops down into the teeth. It can be fitted to all flat and curved surfaces, using rivets, countersunk (flathead) screws or bolts. CL204 can also be sewn, riveted or bolted onto webbing or fabric.

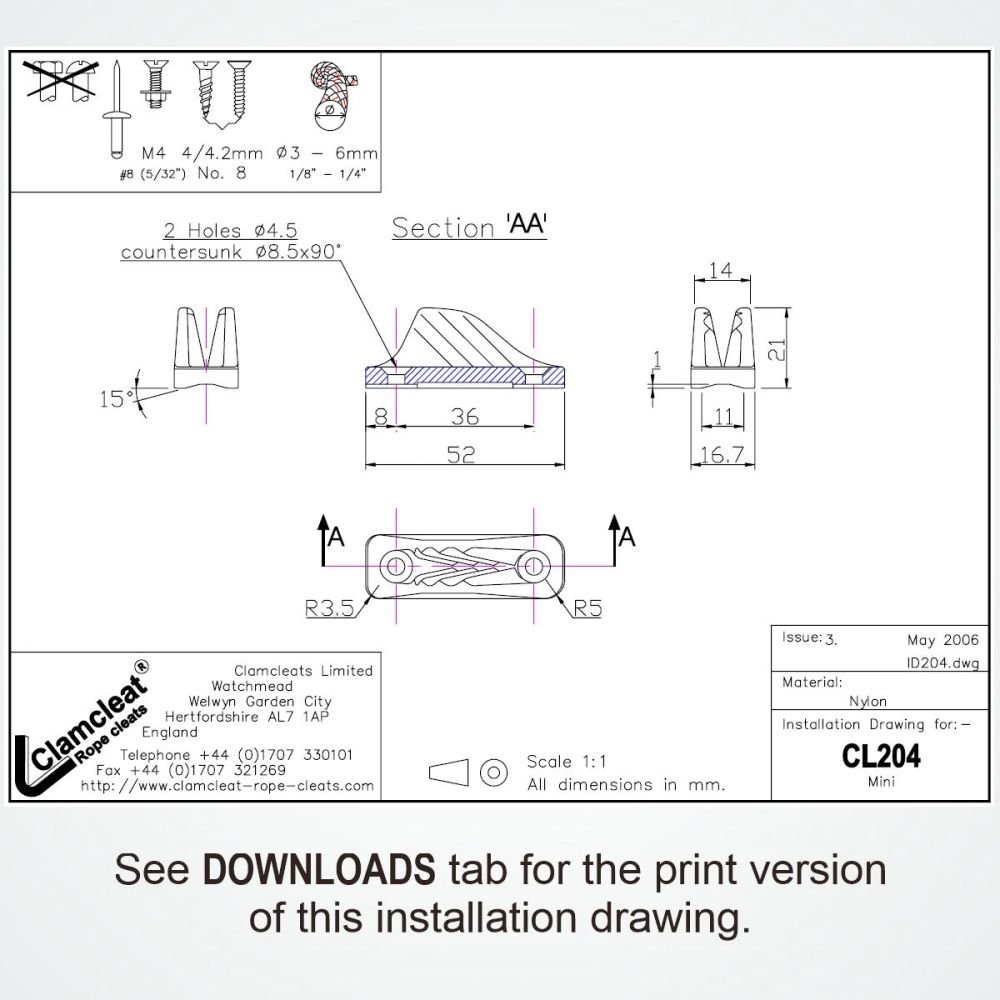

| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 3 – 6mm | 1/8 – 1/4″ | |
| Material | Nylon | Nylon | |
| Hole Centres | 36mm | 1 7/16″ | |
| Length | 52mm | 2″ | |
| Width | 17mm | 5/8″ | |
| Height | 21mm | 13/16 | |
| Bolt Size | M4 | #8. 5/32″ | |
| Screw Size | 4.2 | No 8 | |
| Weight | 9gms | 0.3oz |
