Description

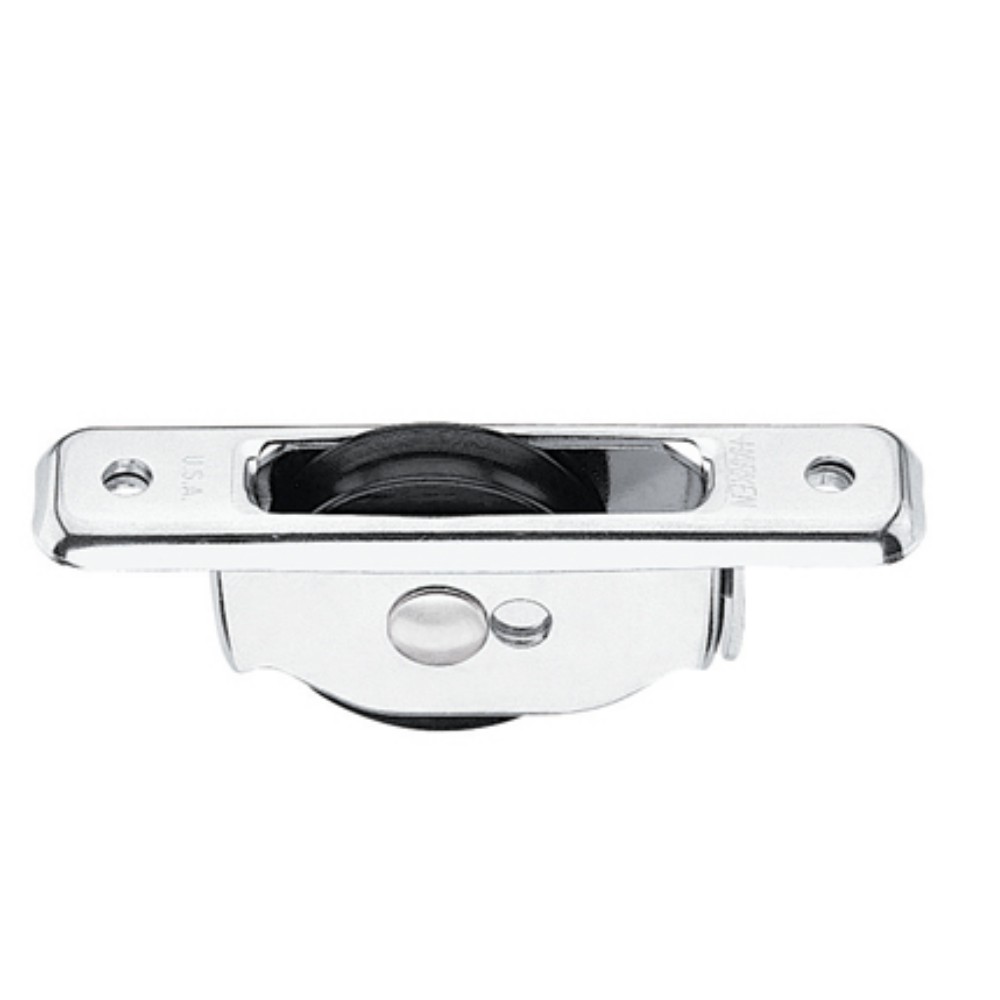

1.00 Wire Thru Deck Block
Lightweight, low-friction wire blocks carry wire halyards and high-strength control lines on boats of all sizes.
| Sheave Ø (mm) | 25 mm |
| Sheave Ø (in) | 1 in |
| Weight (g) | 28 g |
| Weight (oz) | 1 oz |
| Maximum line Ø (mm) | 4 mm |
| Maximum line Ø (in) | 5/32 in |
| Fasteners (mm) | 5 RH mm |
| Fasteners (in) | #10 RH in |
| Maximum working load (kg) | 454 kg |
| Maximum working load (lb) | 1000 lb |
| Breaking load (lb) | 2000 lb |
| Breaking load (kg) | 907 kg |
| Mounting hole spacing (mm) | 54 mm |
| Mounting hole spacing (in) | 2 1/8 in |
| Cutout (mm) | 11 x 39 mm |
| Cutout (in) | 13/32 x 1 17/32 in |
| Maximum wire Ø (in) | 3/32 in |
| Maximum wire Ø (mm) | 2 mm |
