Description

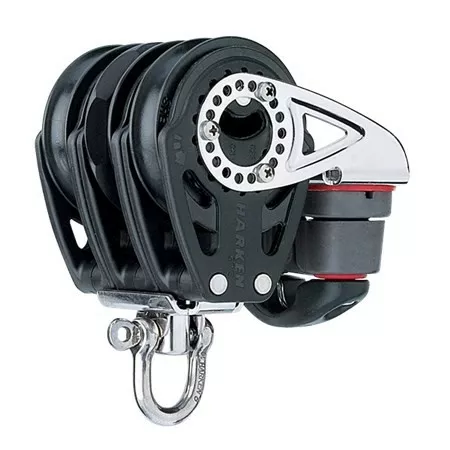

Low-friction Carbo Air Pulleys are lightweight, strong, reliable and affordable. these small, compact pulleys have very high working loads for safe, easy, frequent readjustments. This version features a stainless swivel at the head-mounted shackle base and are great for larger dredges.
Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.
| Sheave Ø (mm) | 57 mm |
| Sheave Ø (in) | 2 1/4 in |
| Length (mm) | 103 mm |
| Length (in) | 4 1/16 in |
| Weight (g) | 435 g |
| Weight (oz) | 15.4 oz |
| Maximum line Ø (mm) | 10 mm |
| Maximum line Ø (in) | 3/8 in |
| Maximum working load (kg) | 680 kg |
| Maximum working load (lb) | 1500 lb |
| Breaking load (lb) | 3750 lb |
| Breaking load (kg) | 1700 kg |
| Shackle pin Ø (mm) | 6 mm |
| Shackle pin Ø (in) | 1/4 in |
