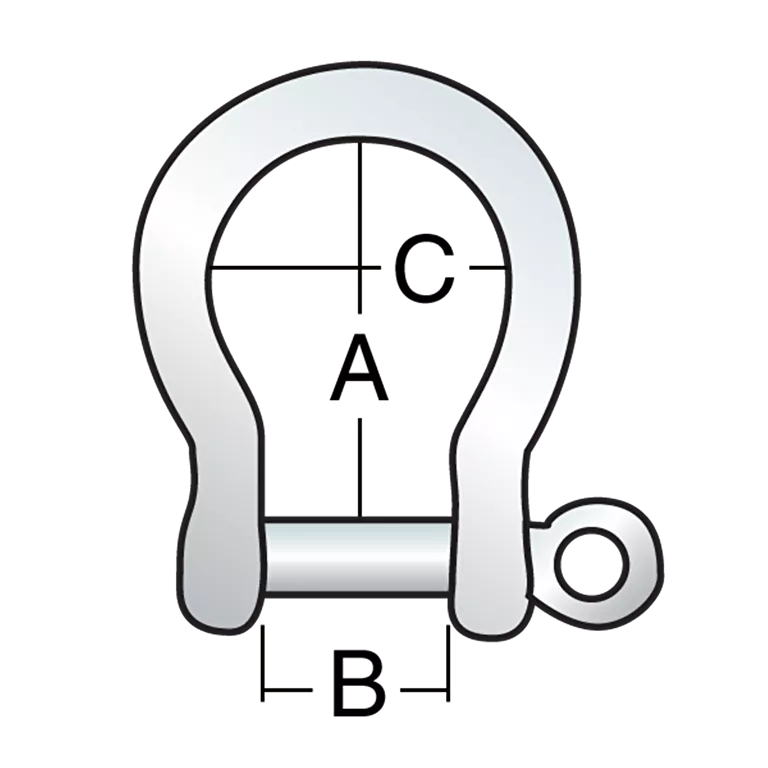

5mm Shallow Bow Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multidirectional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackles.
| Weight (g) | 14.5 g |
| Weight (oz) | 0.51 oz |
| Maximum working load (kg) | 540 kg |
| Maximum working load (lb) | 1190 lb |
| Breaking load (lb) | 2380 lb |
| Breaking load (kg) | 1080 kg |
| A (mm) | 17 mm |
| A (in) | 11/16 in |
| B (mm) | 11 mm |
| B (in) | 7/16 in |
| Shackle pin Ø (mm) | 5 mm |
| Shackle pin Ø (in) | 3/16 in |
| C (mm) | 14 mm |
| C (in) | 9/16 in |
