£7.05 (ex. VAT £5.88)
At the Front
In stock (can be backordered)

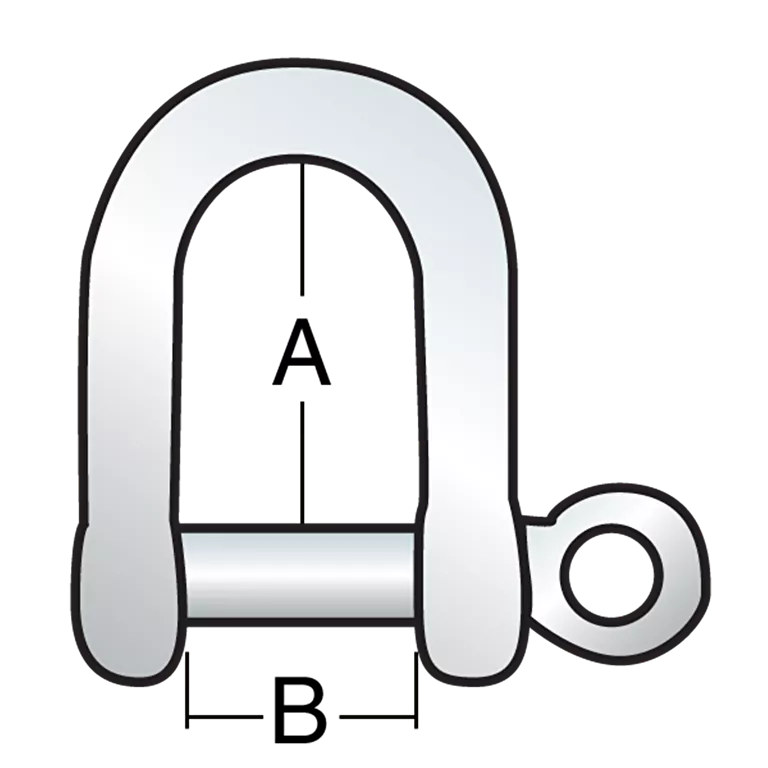

Harken 5mm Stamped Shackle
Stamped shackles are used on most Harken Small Boat Blocks and are appropriate for low loads. For higher loads, select forged and high-resistance shackles instead.
| Weight (g) | 8 g |
| Weight (oz) | 0.29 oz |
| Shackle pin Ø (mm) | 5 mm |
| Shackle pin Ø (in) | 3/16 in |
| Maximum working load (kg) | 567 kg |
| Maximum working load (lb) | 1250 lb |
| Breaking load (kg) | 1134 kg |
| Breaking load (lb) | 2500 lb |
| A (mm) | 12 mm |
| A (in) | 1/2 in |
| B (mm) | 11 mm |
| B (in) | 7/16 in |
| Dimensions | 5 × 5 × 5 cm |
|---|
Harken, Inc. is a leading manufacturer and marketer of quality sailboat hardware and accessories.
The Sailingfast team have used Harken technology on all sorts of boats from dinghies up to yachts, and have been impressed by their attention to detail, their innovation and the range of the products available.
If you would like advice on a flip flop block, furler or anything else, just drop us a line on 01324 861 756.
