Description

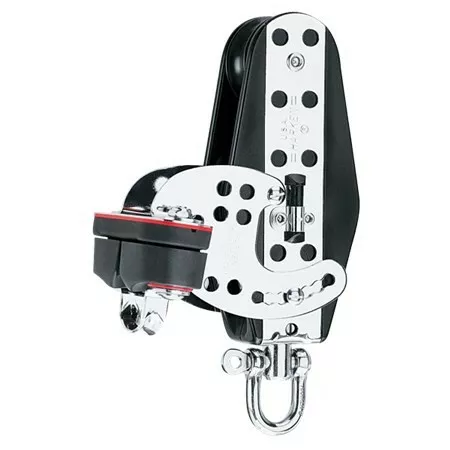

Midrange Hexaratchet blocks grip loaded sheets, yet allow sailors to ease and trim quickly and with complete control. A switch on the side engages and disengages the ratchet mechanism.
| Length (in) | 8 1/2 in |
| Sheave Ø (mm) | 76 mm |
| Sheave Ø (in) | 3 in |
| Length (mm) | 216 mm |
| Weight (g) | 751 g |
| Weight (oz) | 26.5 oz |
| Shackle pin Ø (mm) | 8 mm |
| Shackle pin Ø (in) | 5/16 in |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Maximum working load (kg) | 816 kg |
| Maximum working load (lb) | 1800 lb |
| Breaking load (kg) | 2268 kg |
| Breaking load (lb) | 5000 lb |
| Turns | clockwise |
