Description
Clamcleat CL241AN Racing Sail Line (Port) Hard Anodised. As used on the WASZP launching trolley. Don’t forget to get yourself the CL273AN for the starboard side.

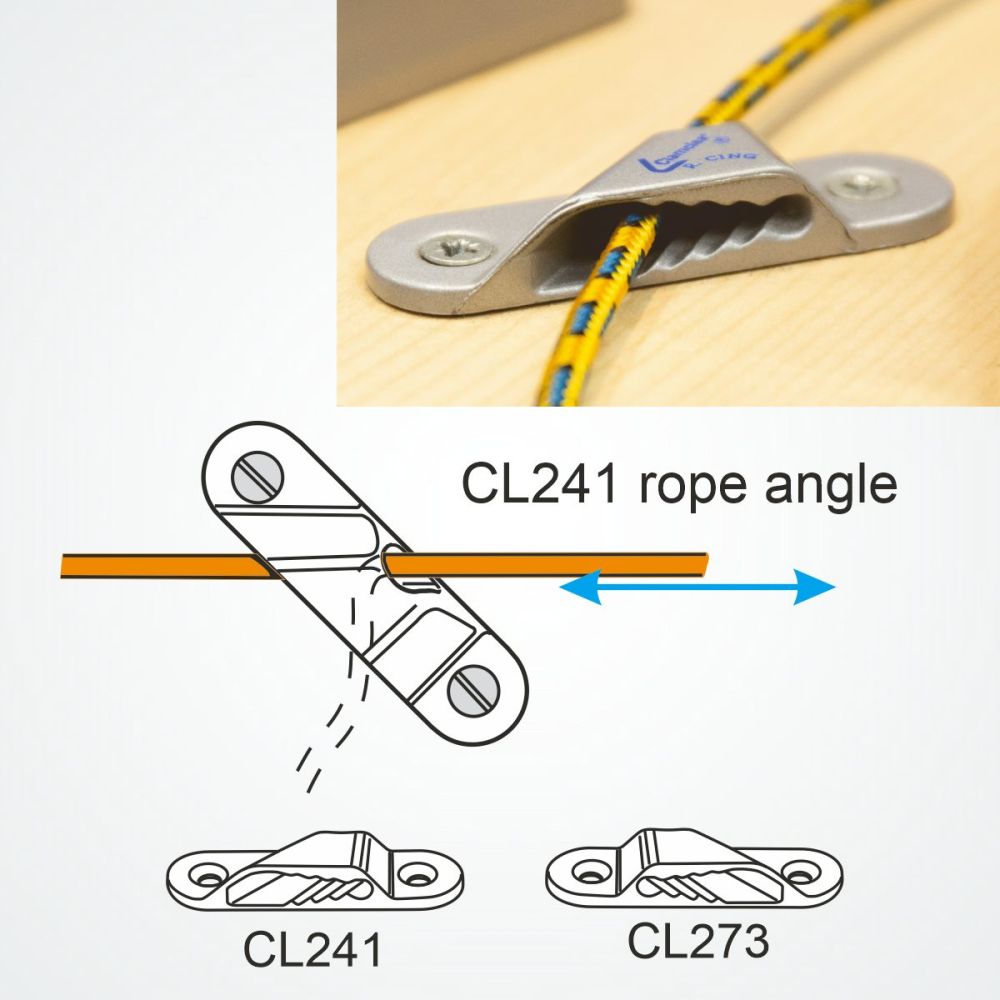

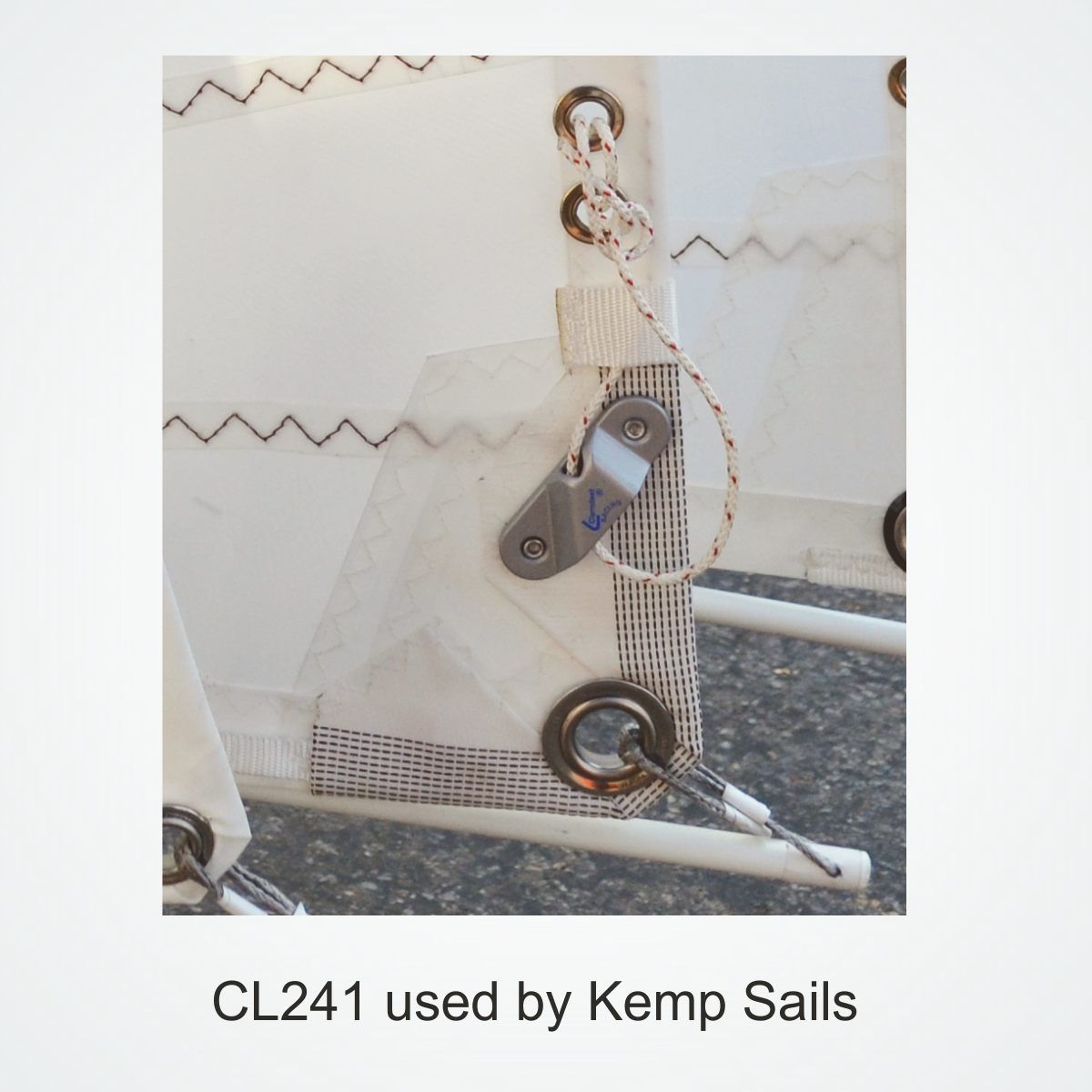

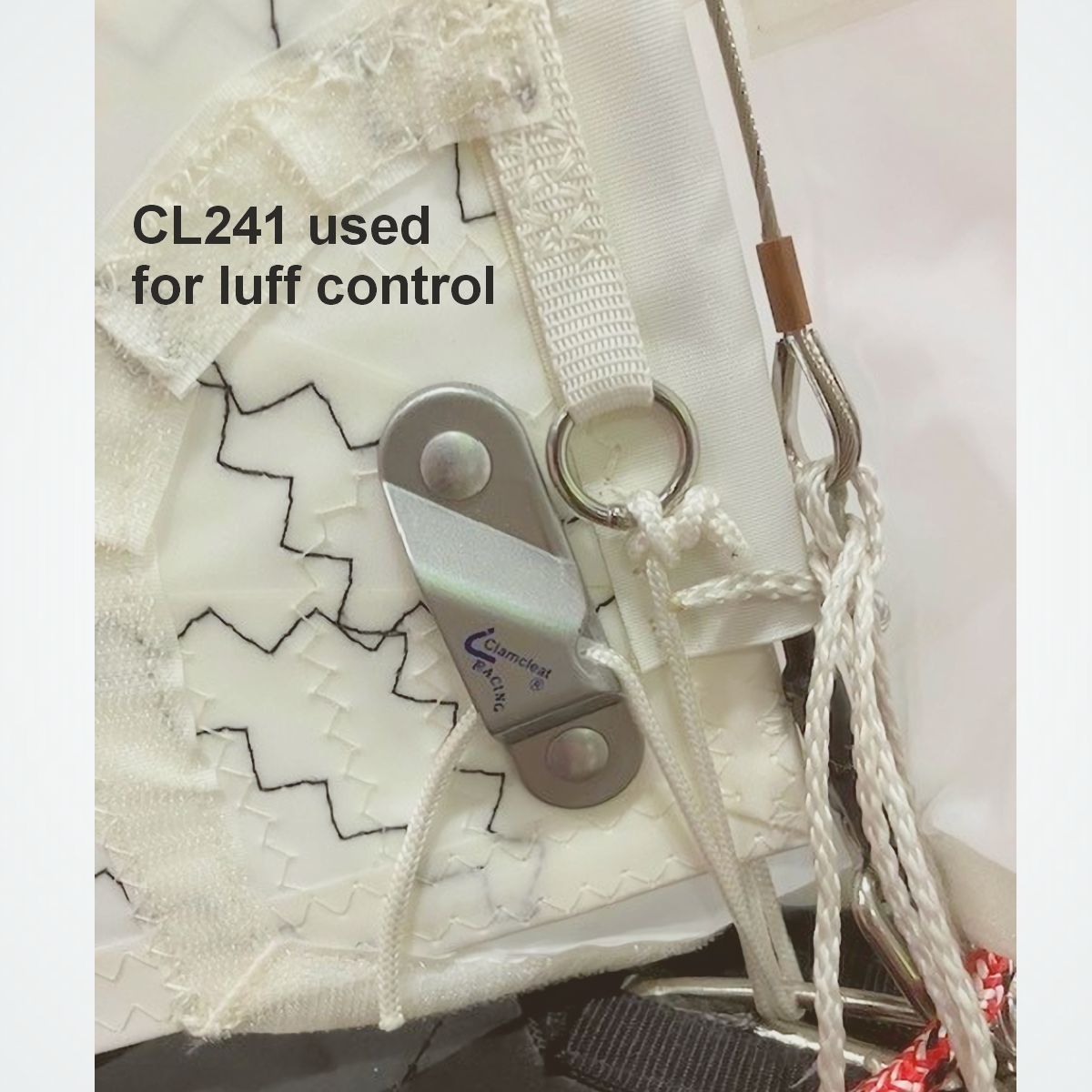

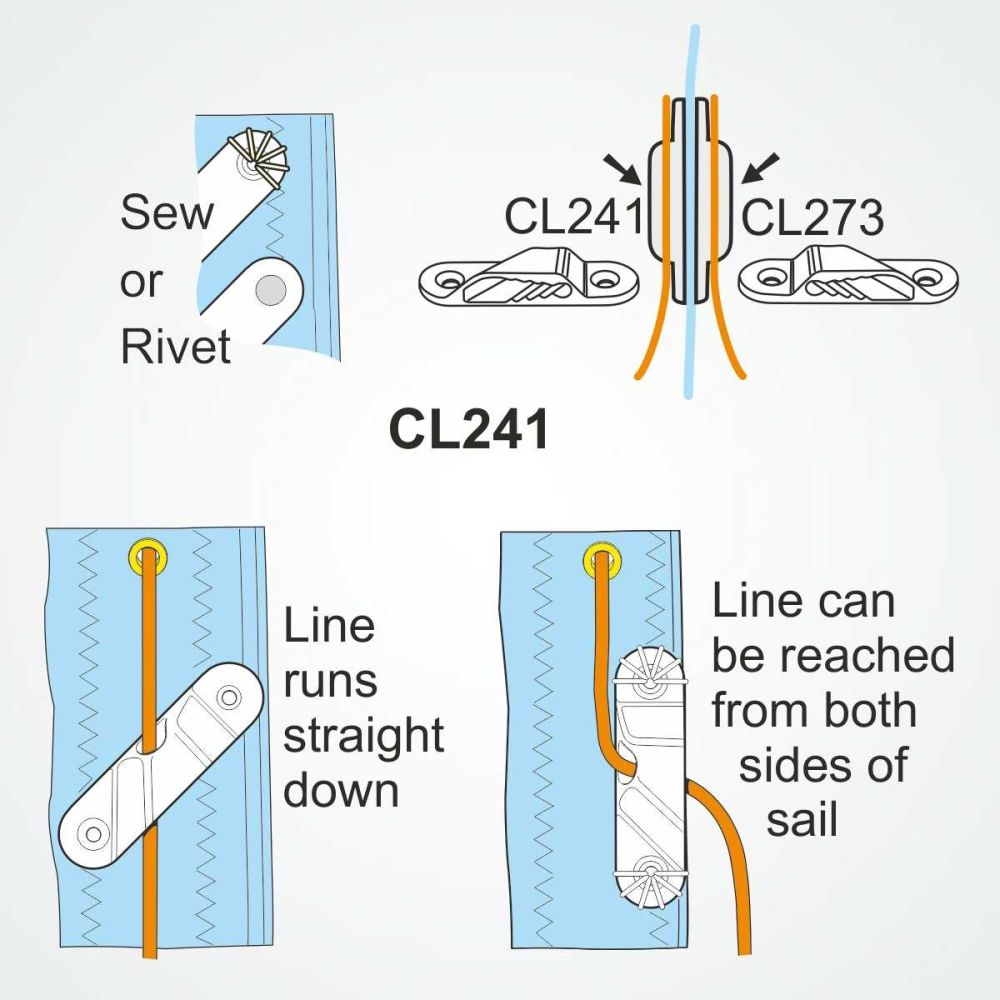

The tooth design of the CL241 Racing Sail Line Cleat (Port) allows a quick, positive lock that is easy to release. Add to this its low profile and ability to hold high loads, makes it ideal for tensioning leech lines on larger sails, as well as luff lines on smaller sails. The integrated rope guide also make it suitable for adjusting & securing reefing points. The CL241 is also use as a low profile deck cleat and for tensioning trampolines on dinghies and catamarans. Â Manufactured from aluminium for light weight and durable performance it can be mounted in two positions.

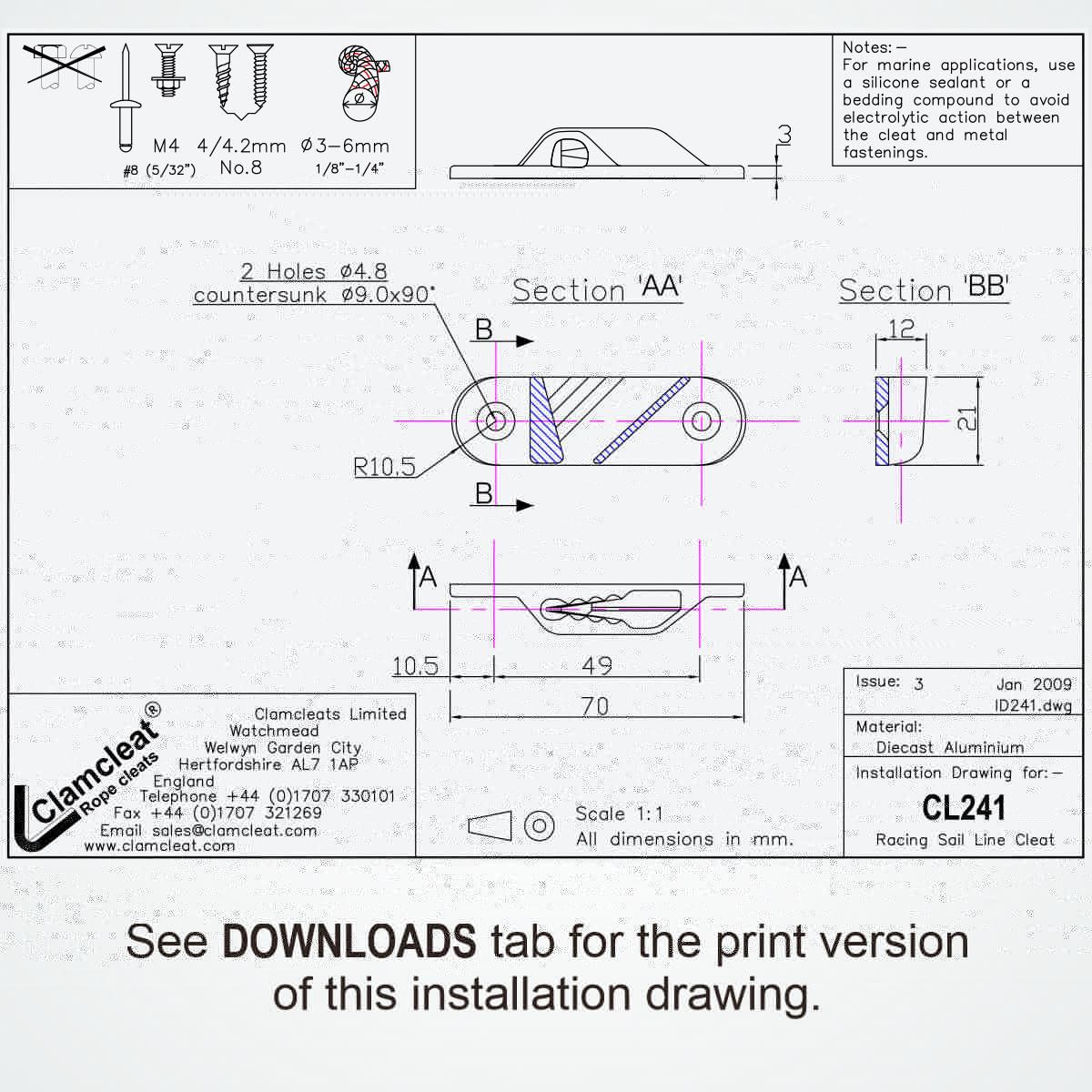

| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 3 – 6mm | 1/8 – 1/4″ | |
| Material | Aluminium | Aluminium | |
| Hole Centres | 49mm | 1 15/16″ | |
| Length | 70mm | 2 3/4″ | |
| Width | 21mm | 13/16″ | |
| Height | 12mm | 1/2 | |
| Bolt Size | M4 | #8-32. 5/32″ | |
| Screw Size | 4.2 | No 8 | |
| Weight | 16gms | 0.6oz |
