Description

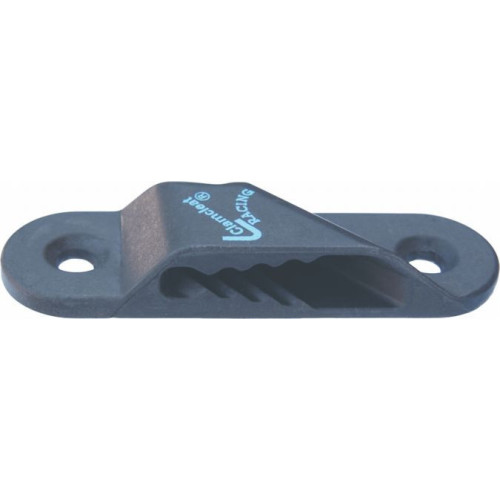

Clamcleat CL273AN Racing Sail Line (Starboard) Hard Anodised. As used on the WASZP launching trolley. Don’t forget to get yourself the CL241AN for the port side.
The Clamcleat® CL273 Racing Sail Line cleat (Starboard) has a tooth design allows a quick, positive lock that is easy to release. Add to this its low profile and ability to hold high loads, makes it ideal for tensioning leech line on larger sails. The integrated rope guide also make it suitable for adjusting & securing reefing points. Also use as a low profile deck cleat and for tensioning trampolines on dinghies and catamarans.  Manufactured from aluminium for light weight and durable performance it can be mounted in two positions.

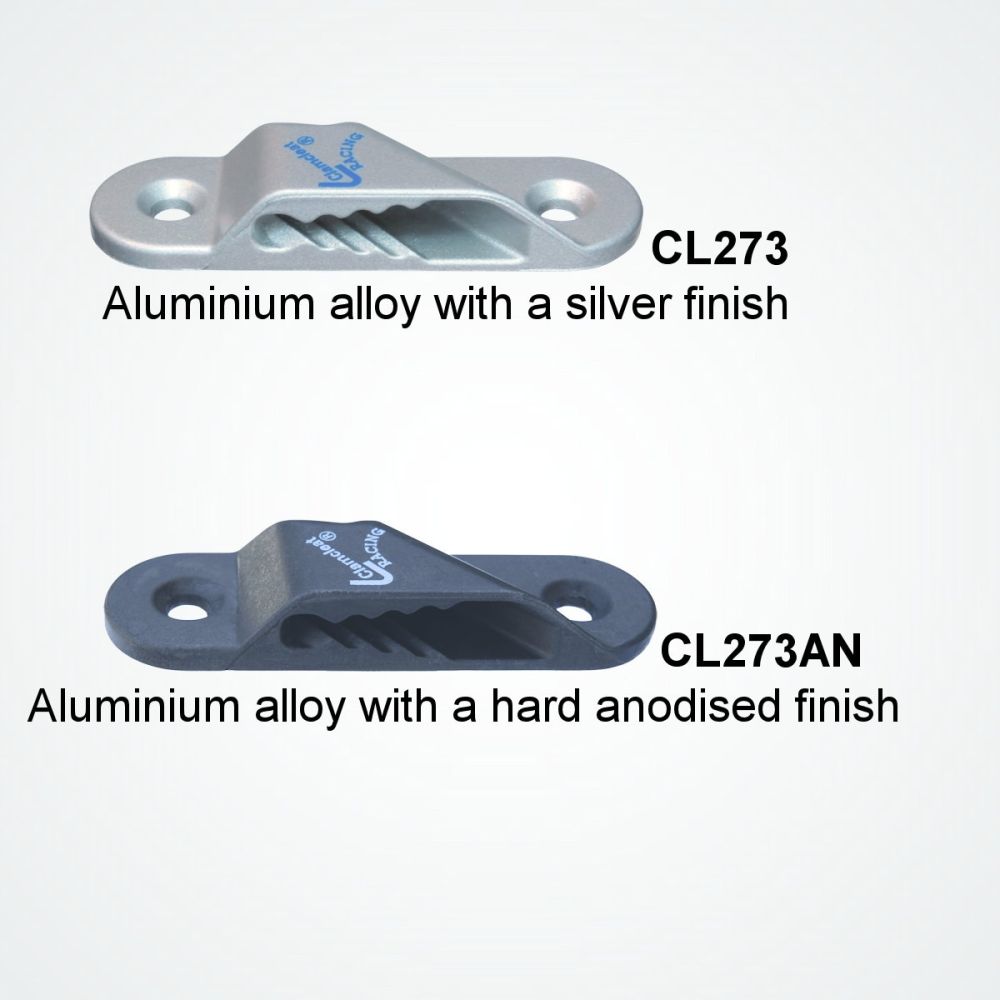

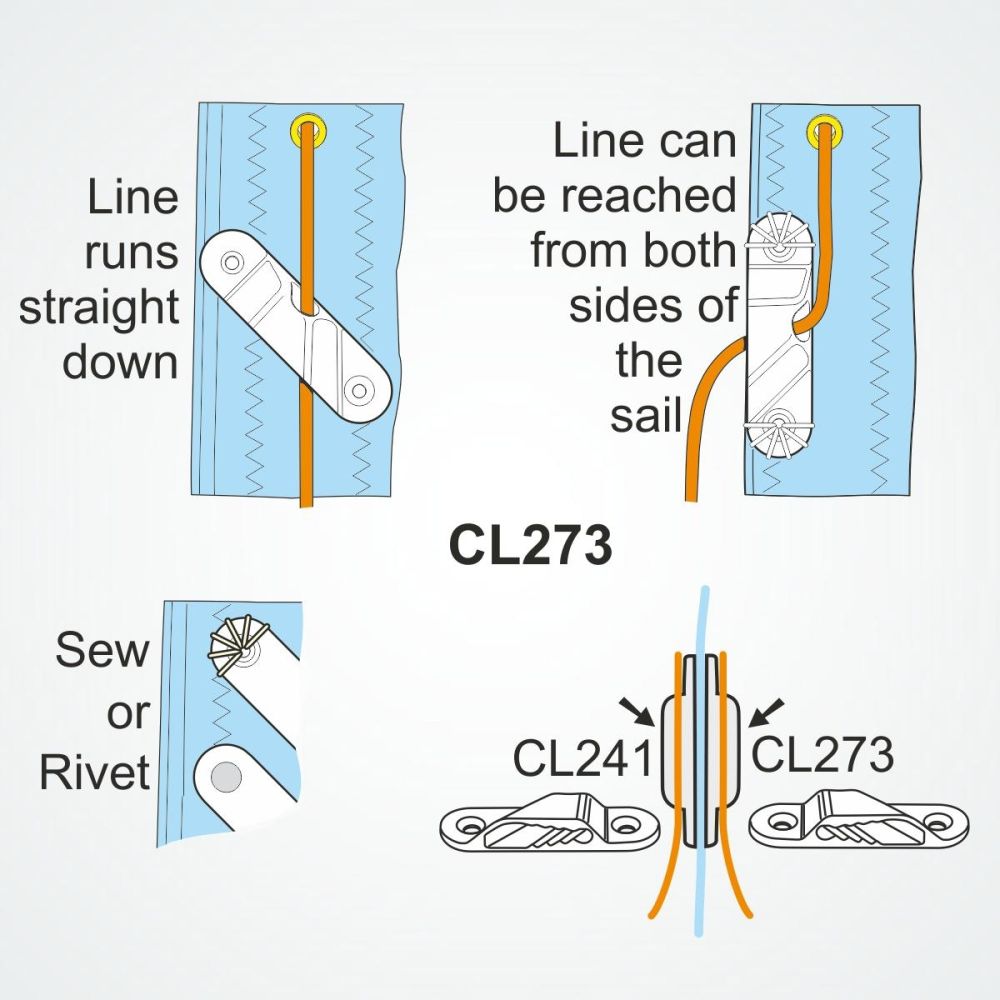

The CL273AN has a hard anodised finish to give the ultimate hard wearing surface.  (Note that alloy cleats should be sewn onto carbon fibre sails, to avoid corrosion.)

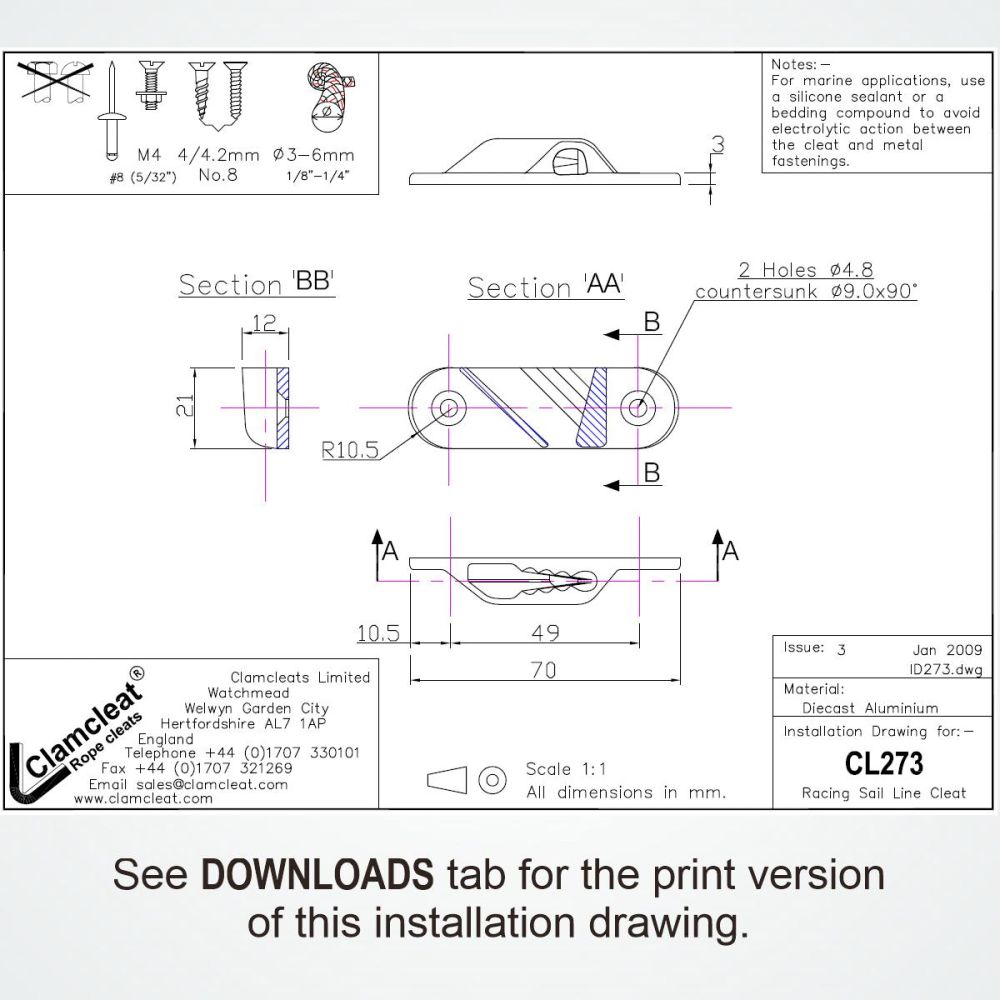

| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 3-6mm | 1/8 – 1/4″ | |
| Material | Aluminium | Aluminium | |
| Hole Centres | 49mm | 1 15/16″ | |
| Length | 70mm | 2 3/4″ | |
| Width | 21mm | 13/16″ | |
| Height | 12mm | 1/2 | |
| Bolt Size | M4 | #8-32. 5/32″ | |
| Screw Size | 4.2 | No 8 | |
| Weight | 16gms | 0.6oz |
