Description
A deceptively simple ridged ‘V’ groove holds ropes firmly, yet is devoid of any parts to break or seize. It allows the immediate release of the rope by a short upward and backward pull.

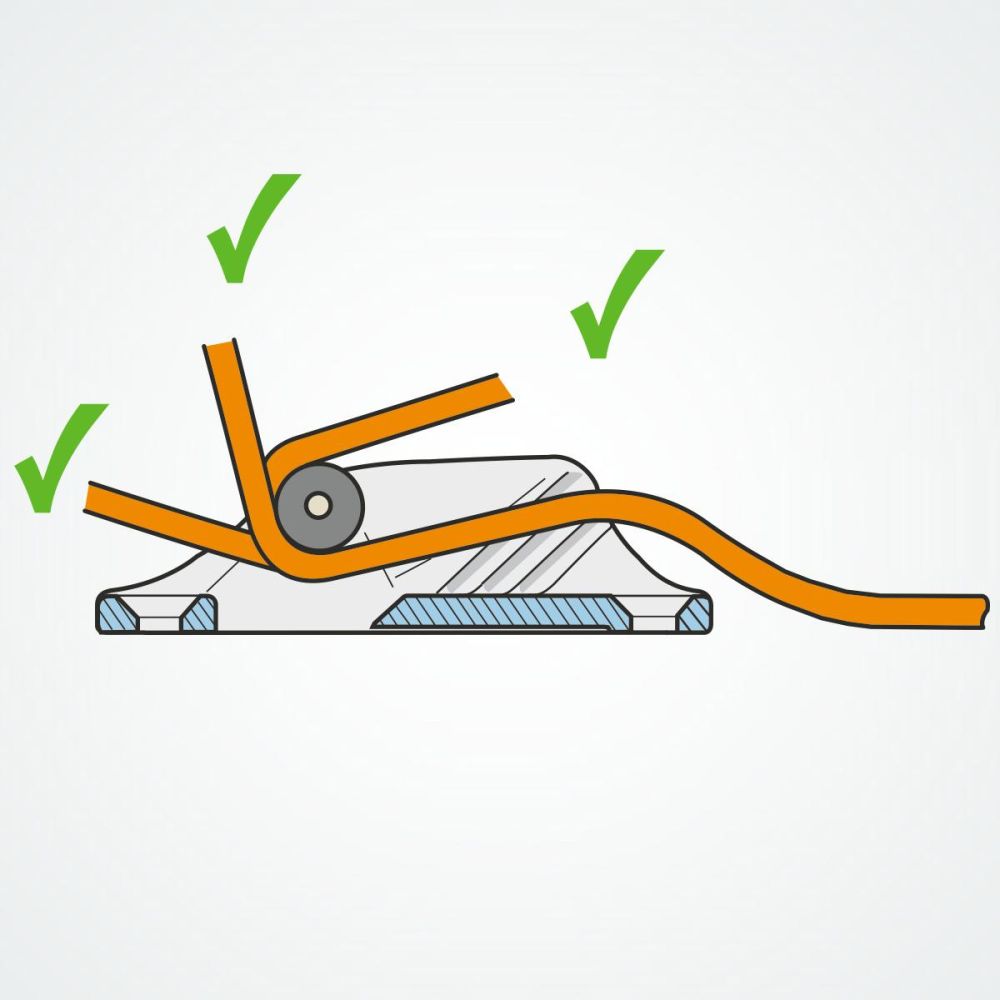

The roller fairlead on the Clamcleat® CL236 allows ropes to enter the cleat from above. The dark grey CL236AN looks good on carbon fibre poles. Also dinghy control lines.

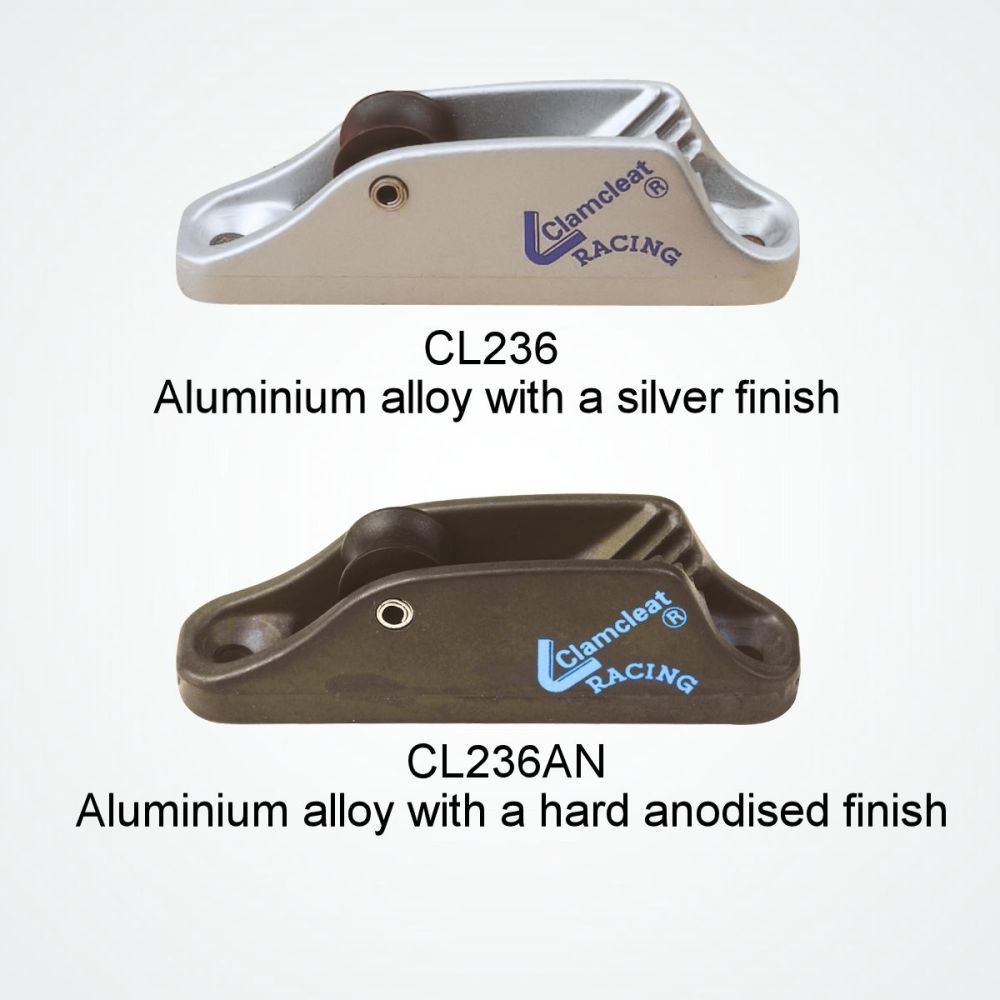

Available in two finishes:
– CL236 has a silver stove enamel finish for a cost effective, high quality coating. A nylon version is available for lower loads – CL203/S1.
– CL236AN has a hard anodised finish to give a hard wearing surface.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 3 – 6mm | 1/8 – 1/4″ | |
| Material | Aluminium & Nylon | Aluminium & Nylon | |
| Hole Centres | 66mm | 2 5/8″ | |
| Length | 82mm | 3 1/4″ | |
| Width | 18mm | 11/16″ | |
| Height | 25mm | 1 | |
| Bolt Size | M5 | #10-24. 3/16″ | |
| Screw Size | 4.8 | No 10 | |
| Weight | 40gms | 1.4oz |
