Description

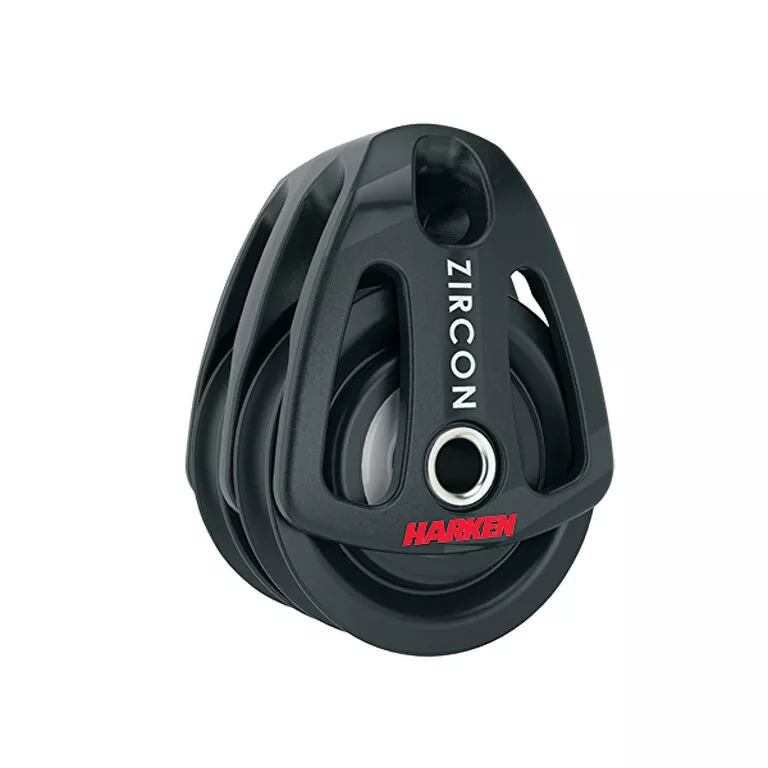

The newest Zircon offerings are six models with 29 mm sheave diameters. These expand the Zircon offering from eight models to eighteen. Zircon is not an all-purpose alternative—no block is. But these smaller sizes make Zircon appropriate for control lines where multi-part purchases are required. Zircon reacts immediately. So, when the pressure gets light and you ease that 24:1 Cunningham rigged under the deck or want to let the jib lead forward for some more power through the chop, you will get response.
| Sheave Ø (mm) | 29 mm |
| Sheave Ø (in) | 1 1/8 in |
| Length (mm) | 43 mm |
| Length (in) | 1 11/16 in |
| Weight (g) | 20.4 g |
| Weight (oz) | 0.72 oz |
| Maximum line Ø (mm) | 6 mm |
| Maximum line Ø (in) | 1/4 in |
| Maximum working load (kg) | 160 kg |
| Maximum working load (lb) | 350 lb |
| Breaking load (kg) | 480 kg |
| Breaking load (lb) | 1050 l |
