Description

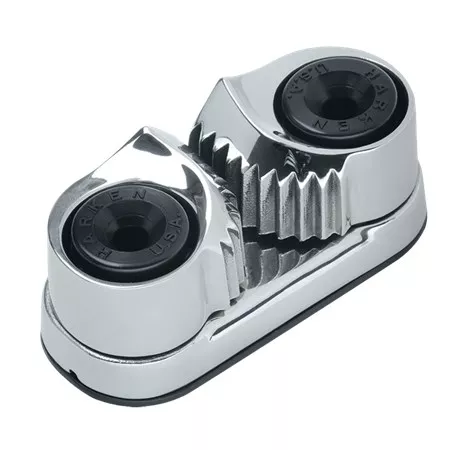

Harken ball bearing cam cleats hold lines securely and release instantly under load. The stainless steel Cam-Matic cleat is made of high-wear, investment?cast stainless that is mirror polished to a high luster.
Length (mm) 85 mm
Length (in) 3 3/8 in
Width (mm) 38 mm
Width (in) 1 1/2 in
Weight (g) 380 g
Weight (oz) 13.4 oz
Maximum line ? (mm) 16 mm
Maximum line ? (in) 5/8 in
Fasteners (mm) 6 FH mm
Fasteners (in) 1/4 FH in
Maximum working load (kg) 227 kg
Maximum working load (lb) 500 lb
Breaking load (kg) 454 kg
Breaking load (lb) 1000 lb
Height (mm) 37 mm
Height (in) 1 7/16 in
Minimum line ? (mm) 6 mm
Minimum line ? (in) 1/4 in
Fastener spacing (mm) 52 mm
Fastener spacing (in) 2 1/16 in
Pawls Stainless steel
